The IR-40FSAC is constructed from black high-strength composite and offers all of the same great features of our other BallastRack systems with the ability to be set closer to the exact angle needed for maximum performance in your region. This system is designed to rack solar modules of any size, even 800 Watt jumbo size solar panels are no match for the IR-40FSAC. With multiple innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast install times. Each IR-40FSAC frame can be assembled in less than 2 minutes, and with its unbelievable ability to rack modules of any size, this system is by far the most cost-effective adjustable ground mount racking system on the market today. Unlike some ground mounting systems, the IR-40FSAC doesn't require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The 15-40° adjustable angle can be set to offer optimal year-round energy production across most regions around the world, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding. With extensive lab testing and engineering, and backed by a 25 year limited product warranty, this system is perfect for any project.
Features
Quick Initial Angle Adjustment

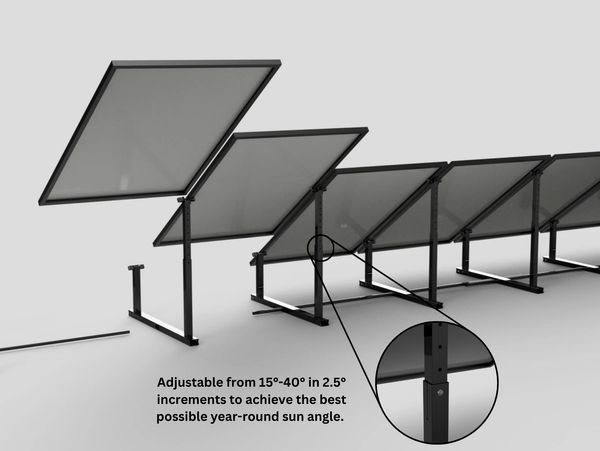

The key feature of the IR-40FSAC is that it offers the ability to set your panels within 2° of the ideal year-round sun angle at an affordable cost and throughout most of the continental United States. With the simple adjustable leg design each frame can be set to the desired angle in just seconds before mounting your panels.
Lightning Fast Assembly & Install

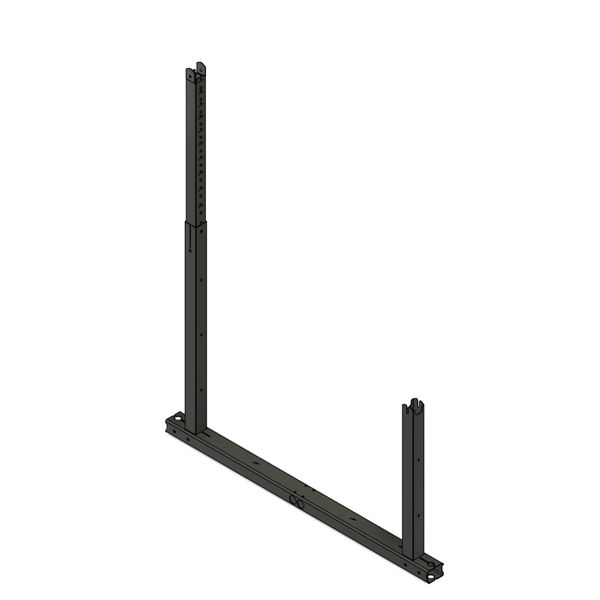

With its simple “U” shaped tubular composite rack frame design, each IR-40FSAC structural frame section can be assembled in less than 2 minutes, and the full start to finish installation time can be completed in less than 10 minutes per module section from frame assembly, to mounting or ballasting, to module installation and final slide height adjustment. This makes the IR-40FSAC up to 6x faster than traditional solar ground mount systems.
.jpg/:/cr=t:0%25,l:13.08%25,w:73.84%25,h:100%25/rs=w:600,h:451.12781954887214,cg:true)
Universal Mounting

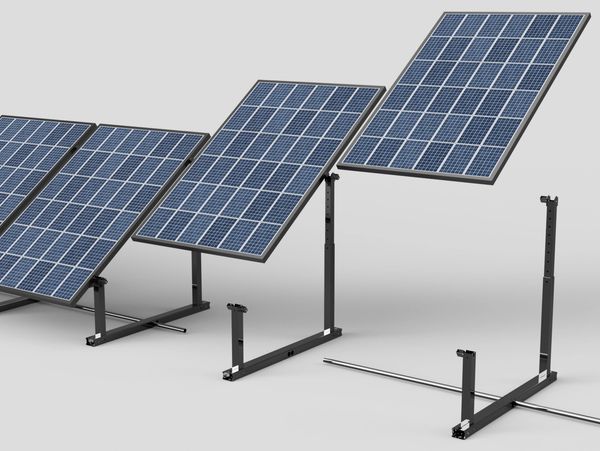

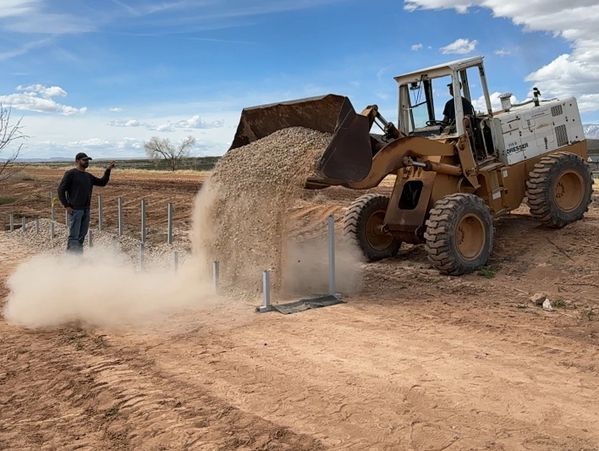

The IR-40FSAC is the most technologically advanced solar racking solution in the industry. Its extremely universal rack frame design can be mounted in 4 different ways with any size solar modules. Extremely rocky or challenging soil conditions are no match for the IR-40FSAC as it can be mounted using the available IR EarthBallast™ System, IR AnchorSpike™ System, or simply anchor bolt the base frame directly to a concrete ballast slab, patio, cargo container or rooftop steel beam. The IR-40FSAC can even be Ballasted with concrete curb stops or flat style water tanks for permanent or temporary mounting solutions. This system also offers adjustable height for solar modules as they can be slid up and down along the flange clamps.
Lowest Cost Per Watt
The IR-40FSAC is the most cost effective solar racking system on the market with its fast, easy installation and its ability to rack solar modules of any size. It is also much more versatile than other competing ground mount systems, and ballasted ground mounting options, as it does not require hours of shoveling dirt into a small opening, making it by far the lowest installed cost per Watt option on the market today. It’s multi-purpose design means that the same easy to warehouse and inexpensive to ship 10lb 5”x5”x48” boxed IR-40FSAC racking system frame can be utilized in a multitude of solar racking solutions.
.jpg/:/cr=t:0%25,l:0.12%25,w:99.75%25,h:100%25/rs=w:600,h:451.12781954887214,cg:true)
No Limitation On Solar Module Size
The IR-40FSAC BallastRack System is the only solar module ground mount that is capable of racking solar modules of any size with no need for additional hardware. Each solar module that is racked sets the width between each frame section, and calculating space between frames is easy. Simply space the base tubes of the IR-40FSAC Frames exactly 3/4 inch less than the width of your solar modules.
High-Strength Engineered & Tested For Class Leading Performance

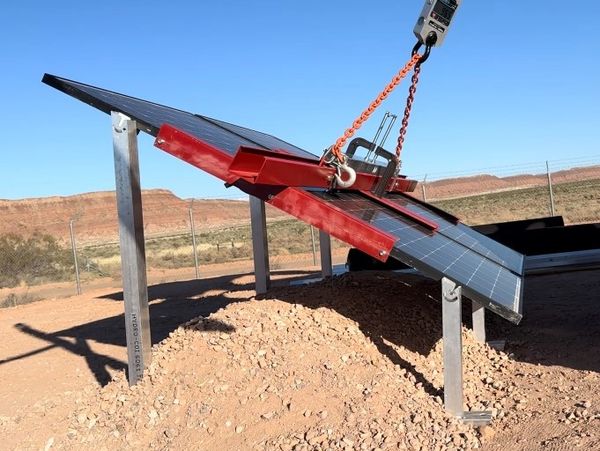

The IR-40FSAC has been extensively engineered and outdoor lab tested with simulated real world wind and snow load conditions by Phoenix National Laboratories, a 50 state accredited testing lab. With its high-strength composite construction, it is capable of withstanding incredible wind and snow loads (see online datasheet for more detailed specs).
IR-40FSAC BallastRack™ Fixed Adjustable Angle Solar Module Racking System
Part Number: IR-40FSAC0043
UPC: 85582600040
Material: Black High-Strength Composite
Fixed adjustable ground mount frame from 15-40° in 2.5 degree increments that can be installed almost anywhere with multiple mounting configurations available. The IR-40FSAC sits 8" higher than our fixed systems for greater ground clearance and utilizes our own IR-F2 solar module bonding clamps (included).
Included Components:
(1) IR-40FSAC Base Tube
(1) IR-40FSAC Adjustable Leg
(1) IR-40FSAC Short Leg
(4) IR-F2 Solar Module Flange Clamp Bonding Brackets
(4) M8-1.25 x 90mm Carriage Bolts
(4) M8-1.25mm Serrated Nuts
(4) M8-1.25 x 16mm Thread Cutting Bolts
